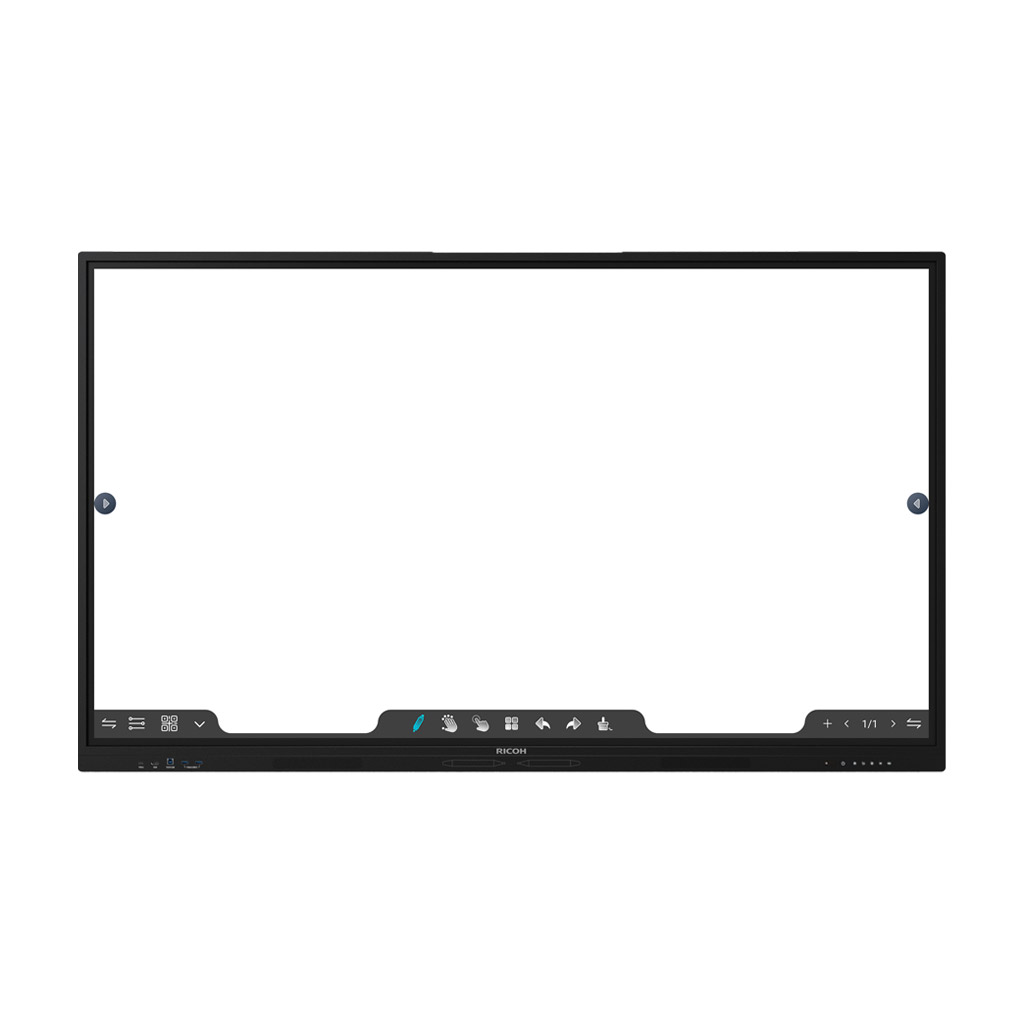

RICOH Interactive Whiteboard A7500 Interactive whiteboard

  • 75" touchscreen
  • 3,840 x 2,160 pixels
  • 400 cd/m2 brightness
  • Plug and Play Android apps
Related Links
    When you need to work together - don’t let distance come between you

    Make meetings collaborative wherever they are, with the new Ricoh Interactive Whiteboards.

    Designed for business

    With its easy-to-use interface and built-in Apps, the new whiteboards offer seamless communication and collaboration. Ideal for hybrid working, allowing multiple people to write on the same screen.

    1. Simple connectivity and usability
      It’s easy to sync your device to the screen, simply choose how you connect – HDMI, USB or USB Type-C.
    2. Effective split-screen presentation
      Using two screens is a standard most expect in work and presentations. Run two different apps or images side by side with the interactive whiteboard and get more from your meetings.
    3. Useful picture-in-picture function
      A picture can speak a thousand words – so add an image to your whiteboard with the picture-in-picture function. This could be data, charts or stock shots that help get your point across.
    4. Plug and Play Android Apps
      Embedded with Android OS, you can use all your favourite apps. Many apps are preloaded and ready for use to save you time, such as the whiteboard and wireless presentation apps.
    Download Brochure

    Specifications

    What's included

    Touch pen
    2 pcs

    Read this first and Quick Guide
    In English, French, German, Spanish, Brazilian Portuguese

    Remote controller
    Yes

    Batteries for remote controller
    2 x AAA batteries

    Power cord
    Yes

    USB-C cable
    Yes—2 m

    USB A-B cable
    Yes—3 m

    HDMI 2.0 cable
    Yes—3 m

    Plastic clamp
    2 pcs

    Physical dimensions (WxDxH)—mainframe
    1,723 x 88 x 1,035 mm
    Weight—mainframe
    51 kg
    Panel size
    75 inches
    Backlight
    D-LED
    Effective display area
    1,649.664 x 927.936 mm
    Resolution
    3,840 x 2,160 pixels
    Colour reproduction
    1.07 billion colours (8-bit + Frame rate control)
    Brightness
    400 cd/m2—typical
    Contrast
    1200:1
    Pixel pitch
    0.4296 mm
    Response speed
    8 ms
    Viewing angle HV
    178 degrees
    Audio
    Rear
    1 x 3.5 mm mic and other audio source in
    1 x 3.5 mm audio out
    1 x SPDIF
    Video

    Rear
    2 x HDMI 2.0 in
    1 x DisplayPort in
    1 x VGA in
    1 x USB 2.0 Type A
    2 x USB 3.0 Type A
    1 x HDMI 2.0 out

    Front
    1 x HDMI 2.0 in

    Touch technology
    Infrared touch frame
    Touch points
    20
    Touch resolution
    32,768 x 32,768—interpolated
    Touch output
    HID Standard, USB 2.0 full speed
    Touch panel cover glass
    3.2 mm toughened glass
    Interfaces - standard

    Rear
    2 x HDMI 2.0 in
    1 x DisplayPort in
    1 x VGA in
    1 x Audio in
    2 x LAN—10/1000 Base-T, 100 Base-TX (to OPS), 10/1000 Base-T (to Android)
    1 x USB 2.0 Type A
    2 x USB 3.0 Type A
    1 x USB 3.0 Type B—touch interface
    1 x Mic in
    1 x SPDIF in
    1 x HDMI 2.0 out
    1 x Audio out
    1 x RS-232 in

    Front
    1 x USB Type C
    2 x USB 3.0 Type A
    1 x USB 3.0 Type B—touch interface for HDMI
    1 x HDMI 2.0 in—HDCP compliant

    Interfaces - optional
    With Ricoh IWB Controller OP-5 Type 2
    10Base-T/100Base-Tx/1000Base-T
    Bluetooth—embedded
    IEEE 802.11 ac/a/b/g/n/ax
    1 x HDMI output
    2 x USB 3.0 Type A
    2 x USB 2.0 Type A
    1 x USB Type C
    1 x 3.5 mm mic jack
    1 x 3.5 mm headphone jack
    Windows

    System
    Windows 10 Professional, 64-bit
    *This device meets the system requirements to install Windows 11.

    Multi-touch
    Windows 7, 8, 10

    Single-touch
    Windows XP

    Macintosh
    Single-touch
    Mac OS X
    Supported languages
    On-screen display
    Japanese, English, French, German, Italian, Spanish, Dutch, Danish, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Czech, Romanian, Greek, Turkish, Simplified Chinese
    Power source
    100–240 V, 50–60 Hz
    Power consumption

    Without optional controller
    380 W—max brightness
    260 W—typical
    0.5 W or less—standby

    Environmental standards
    REACH
    ErP Lot 5
    EU battery (2006/66/EC)
    EU packaging (94/62/EC)
    WEEE
    RoHS EN63000 (CE marking)
    Safety standards
    EN62368-1 (CE marking)
    EN62368-1 (TUV)
    IEC60950-1 / IEC62368-1 (CB attestation)
    TH-A (Thailand)
    Electromagnetic Compatibility (EMC) standards
    EN55035, EN55032, EN61000-3-2, EN61000-3-3 (CE marking)
    AS / NZS CISPR32 (C-Tick) (Australia / NZ)
    HK EMC (Hong Kong)
    EN62311 (CE marking)
    Wireless LAN standards
    EN300328 / EN301893 (CE marking)
    EN301489-1 / EN301489-17 (CE marking)
    EN300328 / EN301893 (RCM) (Australia / NZ)
    EN301489-1 / EN301489-17 (RCM) (Australia / NZ)
    Operating environment

    Temperature
    0–32ºC—operating
    -10–50ºC—storage

    Humidity
    20–80%—operating
    15–80%—storage
